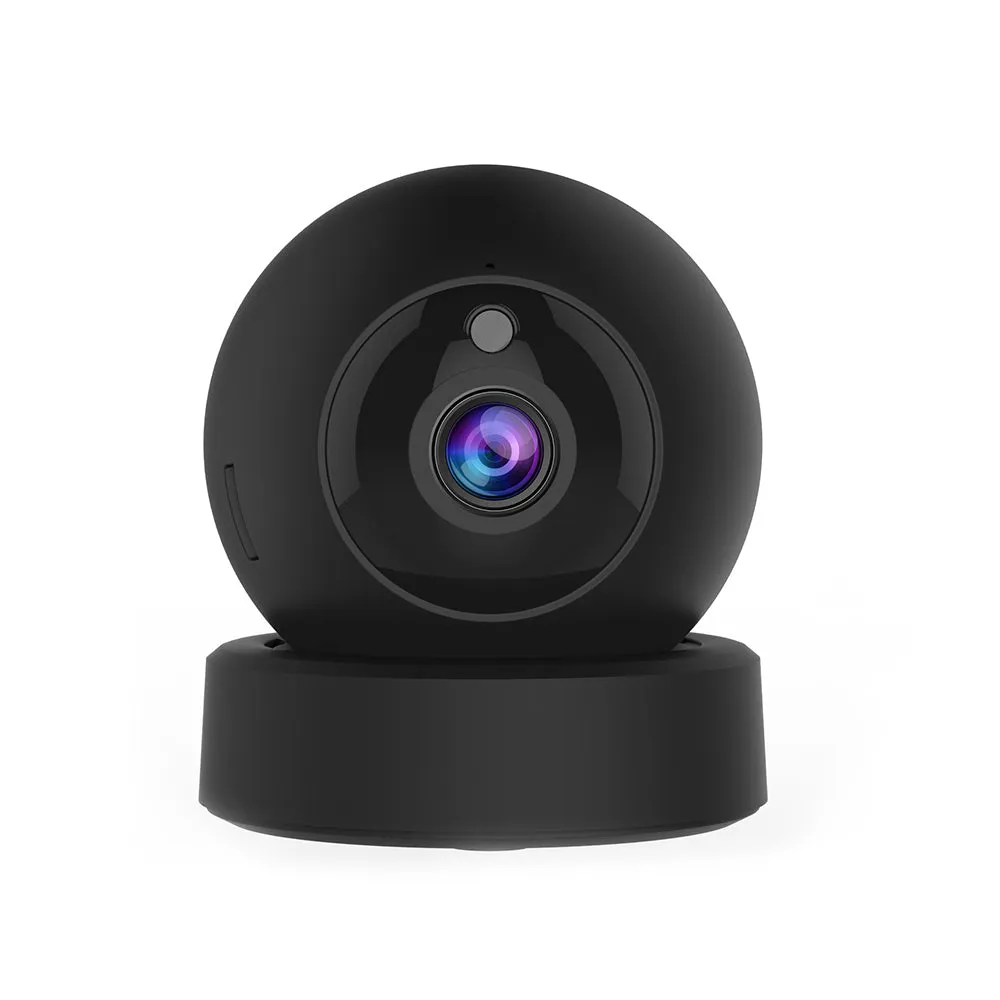

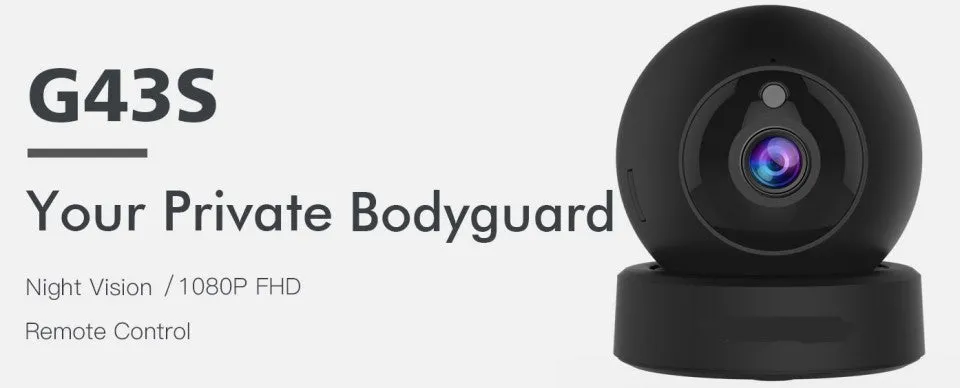

Product Details
＋
Main Features:
- 1080P FHD IP camera, remotely moblie viewing.
- Sopport both wireless Wifi 2.4GHz connection and Lan cable connection.
- Support 4 users viewing at the same time, support 4 cameras watch on One screen.
- Support up to 128GB Micro SD/TF card storage(not including in the retail box).
- Motion detection alarm, record and push the alarm notification to your mobile phone
- Two way audio, snapshot, video recording, talkback, listen, just take care and record every moment of your life no matter when and where you are, just lauch the Eye4 App
- Dual IR-Cut automatic switch, supper quality of night vision
- House, shop, baby monitor, garage, factory......, put it everywhere you want to monitoring.
- Support IOS, Android phone and Window PC.
- Plug and play, easy to connection.
- Video play back function, no missing the moment you want to know.
- 4 protection system guard, to prevent information leakage.
- Pan 350°, Tilt 50°, 107° viewing angle.
Specification:
| System | Operation system | Embedded Linux OS |
| Online visitor | Support 4 visitors at the same time | |
| Image Capture | Image sensor | 1/2.7inch 1080p Progressive Scan CMOS |
| Minimum Illumination | 0.1~0.5Lux（Color mode）,0.1Lux（B&W Mode） | |
| Lens | 4.0mm at F2.5 | |
| View Angle | 102.1 degree（diagonal） | |
| Night vision | Dual Filter, IR-Cut, 6pcs 850nm SMD IR LED IR irradiation distance:5~10m | |
| Video | Encode format | H.264 main profile@level:4.0/Motion-JPEG/JPEG |
| Three Stream | Main Stream:1080p(1920X1080) 15fps Sub Stream:360p(640X360) 15fps Third Stream:360p(640X360) 10fps | |
| Bit Rate | 128～4096kbps | |
| Maximum frame rate | 15fps | |
| Image adjustment | Contrast, Brightness, Saturation, Hue | |
| Audio | Input | Built-in -38 dB microphone |
| Output | Built-in speaker(8ohm 1W) | |
| Sampling frequency / width | 8KHz/16bit | |
| Compression standard | ADPCM/32kbps | |
| Network | Ethernet | 10Base-T / 100Base-TX, RJ45 connector |
| Protocols | TCP/IP, HTTP, TCP, UDP, DHCP, DNS, NTP, RTSP, P2P etc | |
| Wireless LAN | IEEE802.11b/g/n | |
| Wireless LAN Frequency | 2.4~ 2.4835GHz | |
| Wireless LAN security | 64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption | |
| Pan-tilt | Pan-tilt | Pan: 3500,Tilt：600 |
| Preset position | PC APP: support 16 positions, phone APP:support 5 positions | |
| Memory | Socket | TF Push-push socket,Maximum support 128GB |
| Alarm | Alarm Trigger | Motion detection |
| Physical Environmental | Rated voltage | DC 5V /-5% |
| Power consumption | Related power:2.25W(IR LED on), Maximum Power: 4.75W（Pan&Tilt on） | |
| Operating condition | Temperature:-10～500C,humidity:＜90% | |
| Weight | Gross：TBD g (Note: in kind prevail) | |
| Package size | 150 X 95 X 100 mm(L×W×H) |
How to Installation:
Package:
